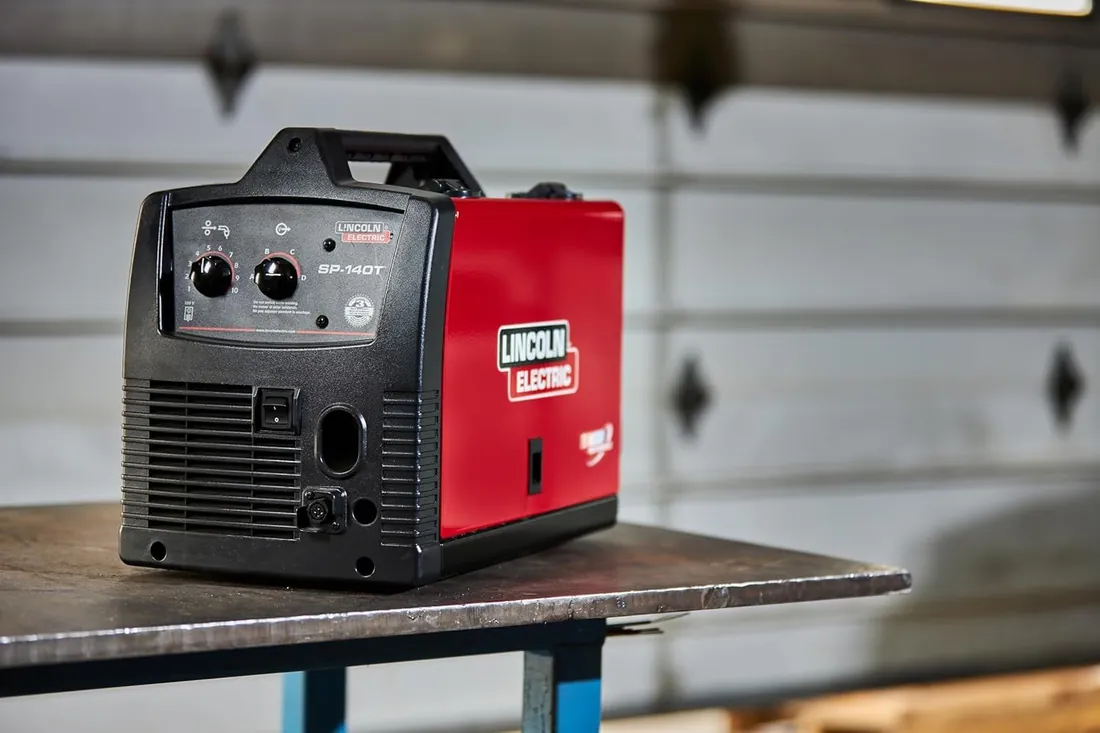

Lincoln Electric K5261-1 MIG Welder: up to 140 A

What it welds

The Lincoln Electric K5261-1 MIG Welder is a MIG / gas with a maker-stated output of 30 to 140 amps.

Miller's starting rule, 1 amp for each 0.001 inch of steel, puts 140 amps at roughly 0.140 in of steel in one pass; thicker work means bevels and more passes. Run the amperage selector.

The listing doesn't give a duty cycle with its amperage, which makes long beads hard to plan; the rating plate or manual should state it. Why it matters.

It runs solid wire under shielding gas for the cleanest wire-feed welds; most machines like it also run flux-core wire outdoors.

Use a lens of at least OSHA's minimum shade for the current: shade 10 or darker for typical MIG work here. Shade chart.

Also on the listing: dimensions of 17.9 x 10.38 x 13.65 inches and a weight of 49.5 lb.

Is it the right machine for the job?

Buy it for

Clean steel welds indoors
Sheet metal to about 0.140 in

Skip it for

Steel much past 0.140 in in one pass

What it does well, where it falls short

Does well

Up to 140 A output

Falls short

Duty cycle not stated with amps

Power and setup notes

Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.

Rated output and specs

Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.

Model number	K5261-1	Retailer
Dimensions (seller)	17.9 x 10.38 x 13.65 inches	Retailer
Product weight	49.5 lb	Retailer
Output range	30-140 amp	Retailer
Spool gun	spool gun	Retailer
