What it welds
The TOOLIOM MIG-135 PRO Flux-Core Welder is a flux-core only with a maker-stated output of up to 135 amps on 110-volt input.
By Miller's rule of thumb of 1 amp per 0.001 inch of steel, 135 amps reaches about 0.135 in in a single pass. Amps by thickness.
The maker's thickness claim reads "up to 1/6"". Makers often mean multiple passes or flux-core wire when a claim runs past the amps rule; the wording here says which.
The listing doesn't give a duty cycle with its amperage, which makes long beads hard to plan; the rating plate or manual should state it. Why it matters.

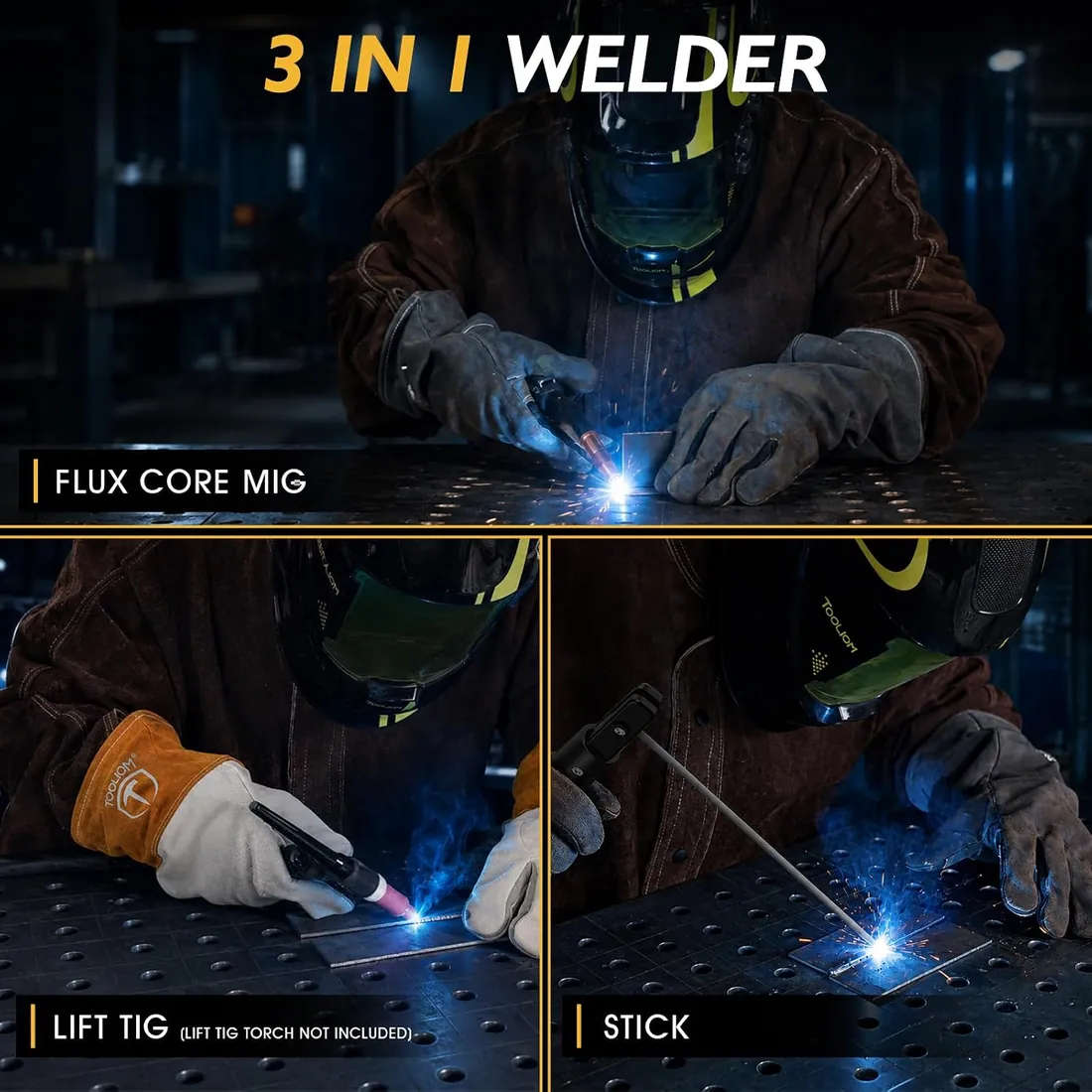

Processes, per the maker: MIG, Stick. Check which torches and guns come in the box; a TIG torch or spool gun is often extra. Process guide.
As a flux-core machine it runs self-shielded wire with no gas bottle, which suits outdoor work; expect slag to chip off and less finesse on thin sheet.
A 120-volt machine runs from a household circuit, usually a 20-amp one per the manual. 120 V vs 240 V.
Eye protection: OSHA's minimum is shade 10 for most of this machine's range. Full table.
Also on the listing: a weight of 18.61 lb.
Is it the right machine for the job?
Buy it for
- Outdoor and gasless repairs
- Sheet metal to about 0.135 in
Skip it for
- Steel much past 0.135 in in one pass
- Aluminium
What it does well, where it falls short
Does well
- Up to 135 A output
- Runs on household 120 V
- No gas bottle needed
Falls short
- Duty cycle not stated with amps
- 120 V caps output
- Slag cleanup
Power and setup notes
- Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.
Rated output and specs
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Model number | MIG-135 PRO | Retailer |
|---|---|---|
| Product weight | 18.61 lb | Retailer |
| Size | 135A Flux MIG Welder | Retailer |
| Material | Metal | Retailer |
| Power | ac | Retailer |
| Output range | 135a | Retailer |
| Input power | 110v | Retailer |
| Max steel (maker) | up to 1/6" | Retailer |
| Processes | MIG, Stick | Retailer |
| Shielding gas | Gasless | Retailer |
Machines to put next to it
Other mig and flux-core welders in the same amp range
- Lincoln Electric K5255-1 Flux-Core Welder
- PRIMEWELD MIG160 Flux-Core Welder
- Lincoln Electric K2696-1 Flux-Core Welder
- Sunstac SS-180M MIG Welder
Every mig and flux-core welders on one spec sheet · All TOOLIOM machines listed
Final verdict
Made for outdoor and gasless repairs.
