What it welds
The YESWELDER FLUX-135PRO Multi-Process Welder is a multi-process with a maker-stated output of up to 135 amps on 110-volt input.
At its top output of 135 amps, Miller's 1-amp-per-thousandth rule points to about 0.135 in of steel per pass. Where the rule comes from.
The maker's thickness claim reads "up to 2/5”". Makers often mean multiple passes or flux-core wire when a claim runs past the amps rule; the wording here says which.
The listing doesn't give a duty cycle with its amperage, which makes long beads hard to plan; the rating plate or manual should state it. Why it matters.

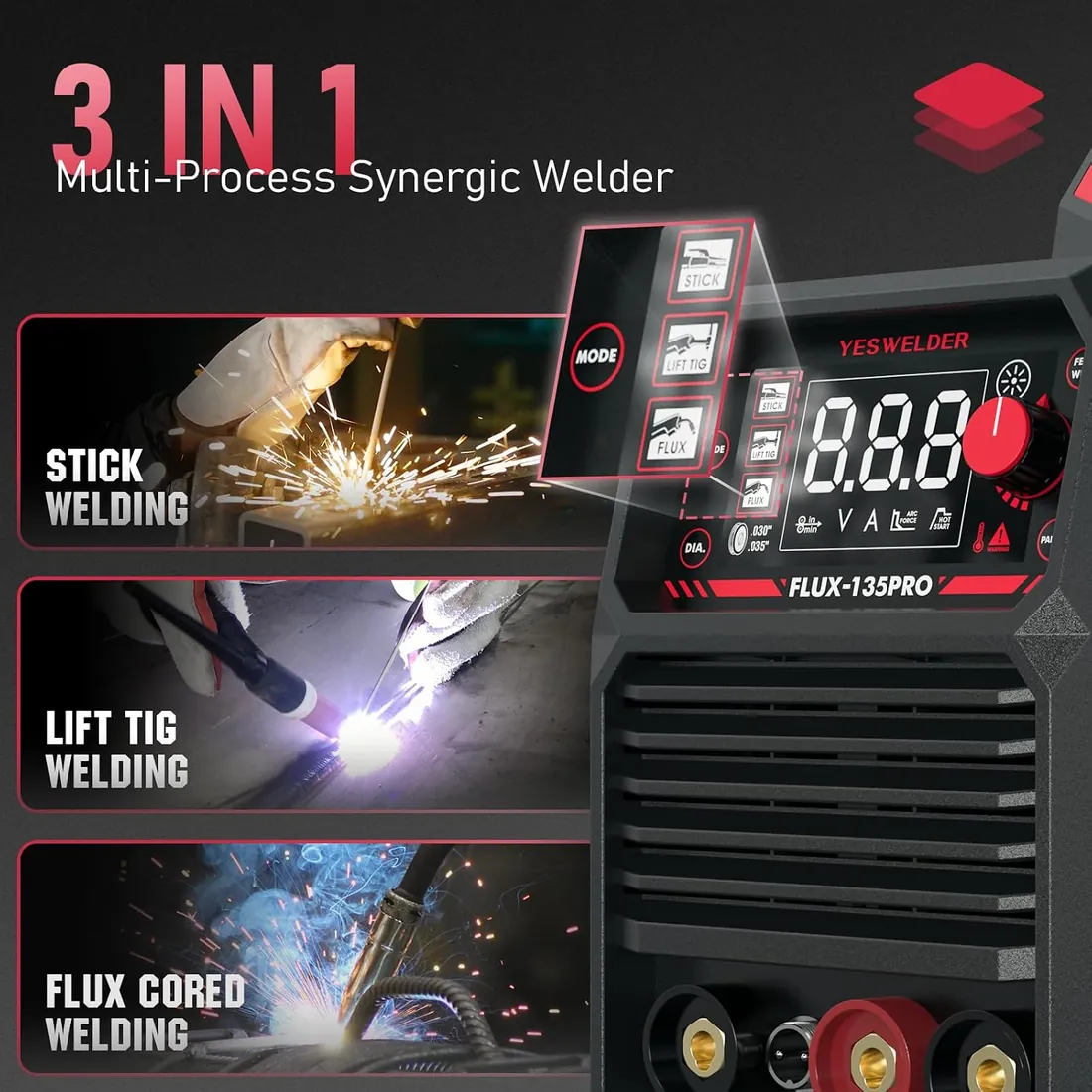

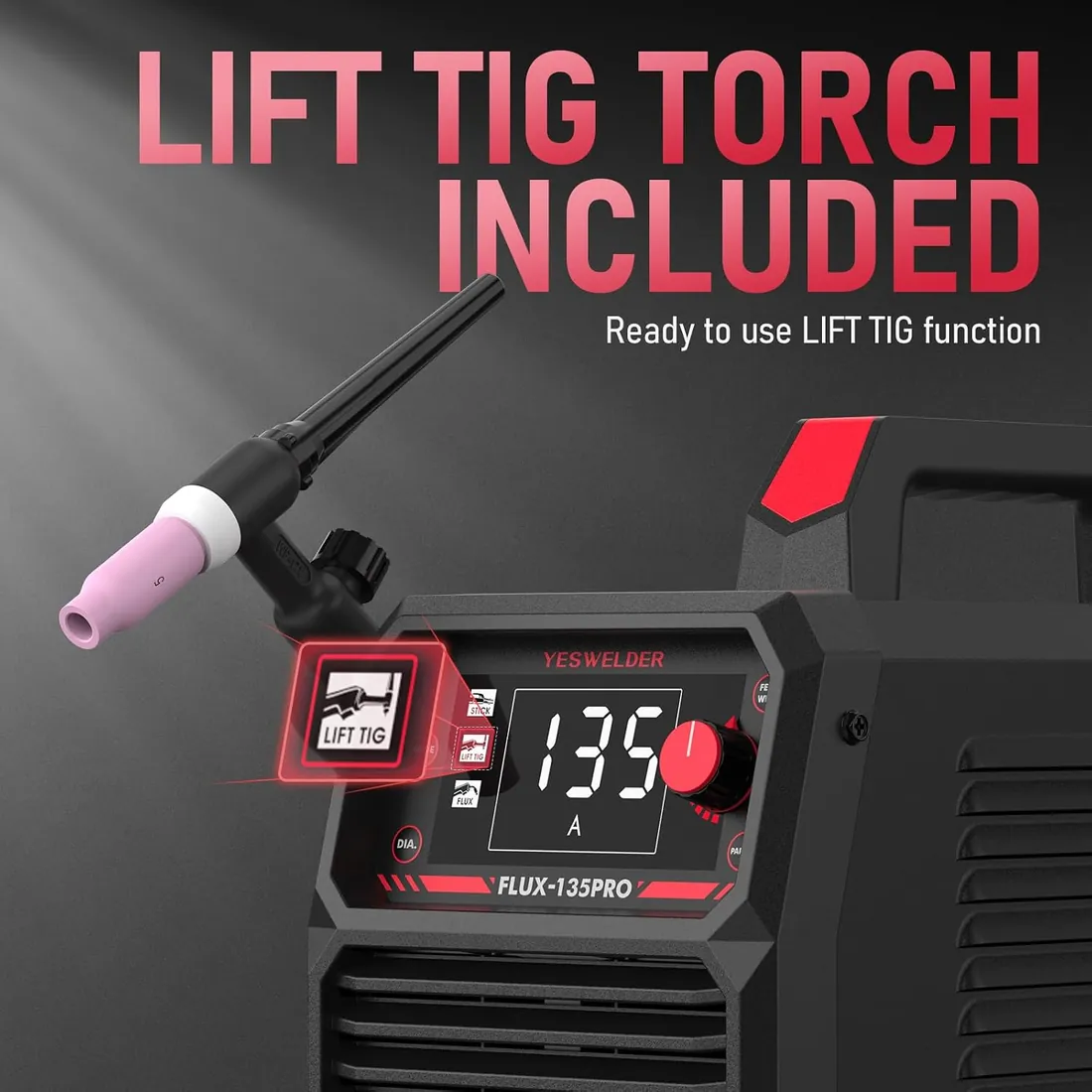

Processes, per the maker: MIG/Lift TIG/Stick. Check which torches and guns come in the box; a TIG torch or spool gun is often extra. Process guide.
A 120-volt machine runs from a household circuit, usually a 20-amp one per the manual. 120 V vs 240 V.
Eye protection: OSHA's minimum is shade 10 for most of this machine's range (shade 10 for stick above 160 A). Full table.
Also on the listing: a weight of 21.7 lb.
Is it the right machine for the job?
Buy it for
- A shop that does a bit of everything
- Sheet metal to about 0.135 in
Skip it for
- Steel much past 0.135 in in one pass
What it does well, where it falls short
Does well
- Up to 135 A output
- Runs on household 120 V
- Multi-process
Falls short
- Duty cycle not stated with amps
- 120 V caps output
- Torches may be extra
Power and setup notes
- Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.
Rated output and specs
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Model number | FLUX-135PRO | Retailer |
|---|---|---|
| Product weight | 21.7 lb | Retailer |
| Size | 14.57×6.10×8.86 in | Retailer |
| Material | Aluminum, Copper, Electronic Components, Insulation Materials, Iron, Plastic | Retailer |
| Power | dc | Retailer |
| Input power | 110 V | Retailer |
| Wattage | 3 KW | Retailer |
| Output range | 135 Amp | Retailer |
| Max steel (maker) | up to 2/5” | Retailer |
| Processes | MIG/Lift TIG/Stick | Retailer |
| Shielding gas | Gasless | Retailer |
Machines to put next to it
Other multi-process welders in the same amp range
- ARCCAPTAIN 165A Multi-Process Welder
- FEMEROL MIG 250PRO Multi-Process Welder
- ARCCAPTAIN 200A Multi-Process Welder
- Weldpro 155 Multi-Process Welder
Every multi-process welders on one spec sheet · All YESWELDER machines listed
Final verdict
Made for A shop that does a bit of everything.
