What it welds
The HONETOOL MMA140D Stick Welder is a stick inverter with a maker-stated output of up to 120 amps on 110-volt input.
At its top output of 120 amps, Miller's 1-amp-per-thousandth rule points to about 0.120 in of steel per pass. Where the rule comes from.
The listing doesn't give a duty cycle with its amperage, which makes long beads hard to plan; the rating plate or manual should state it. Why it matters.

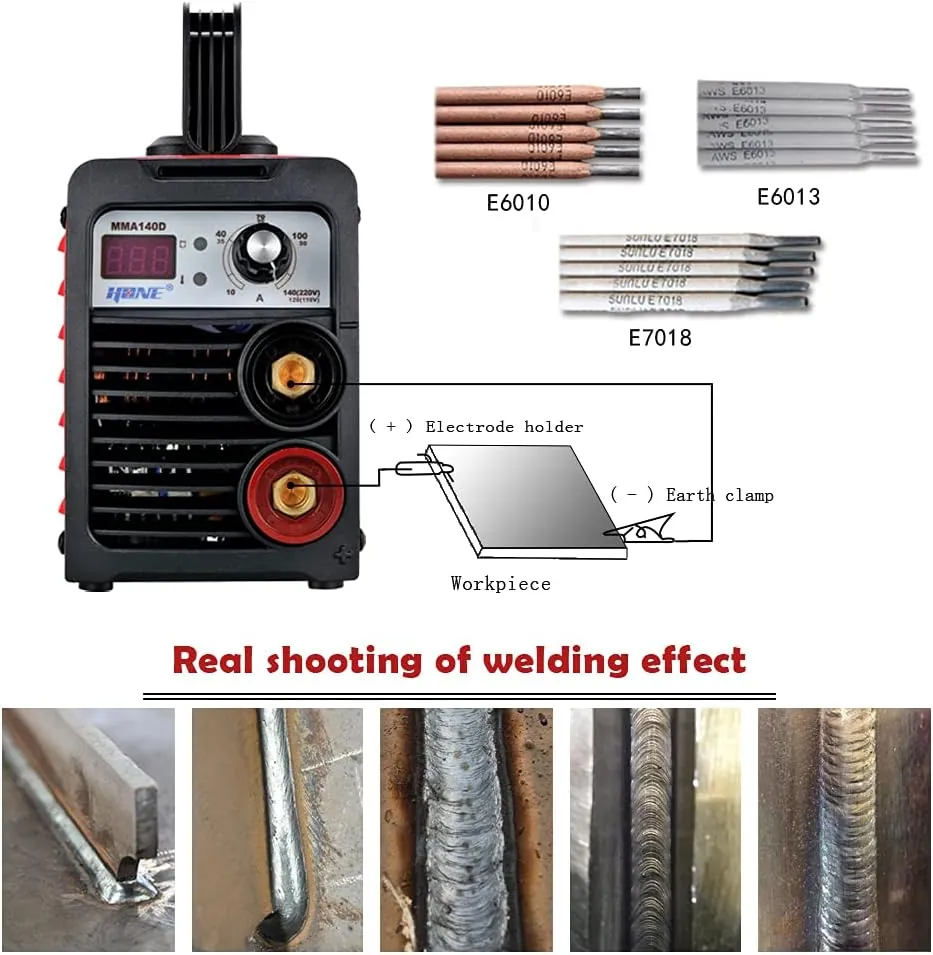

Electrodes, per the maker: 1/16"-1/8". Each rod's packaging states its current range; OSHA ties 60 to 160 amps to 3/32 to 5/32-inch rods and a minimum shade 8.
Household 120-volt power caps its output; check the circuit size the manual asks for. What input voltage changes.
Use a lens of at least OSHA's minimum shade for the current: shade 8 or darker for typical TIG or stick work here. Shade chart.
Also on the listing: dimensions of 9 x 3.9 x 5.6 inches and a weight of 9.44 lb.
Is it the right machine for the job?
Buy it for
- Farm and structural repairs
- Sheet metal to about 0.120 in
Skip it for
- Steel much past 0.120 in in one pass
- Aluminium
What it does well, where it falls short
Does well
- Up to 120 A output
- Runs on household 120 V
Falls short
- Duty cycle not stated with amps
- 120 V caps output
- Slag cleanup
Power and setup notes
- Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.
Rated output and specs
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Model number | MMA140D | Retailer |
|---|---|---|
| Product weight | 9.44 lb | Retailer |
| Dimensions (seller) | 9 x 3.9 x 5.6 inches | Retailer |
| Size | 10 ~ 120A (110V) / 10 ~ 140A (220V) | Retailer |
| Material | Steel, Copper, Aluminium, PA66, etc.. | Retailer |
| Power | ac | Retailer |
| Wattage | 4.29 KW | Retailer |
| Output range | 120a | Retailer |
| Input power | 110v | Retailer |
| Electrode sizes | 1/16"-1/8" | Retailer |
Machines to put next to it
Other stick (arc) welders in the same amp range
Final verdict
A match for farm and structural repairs.
